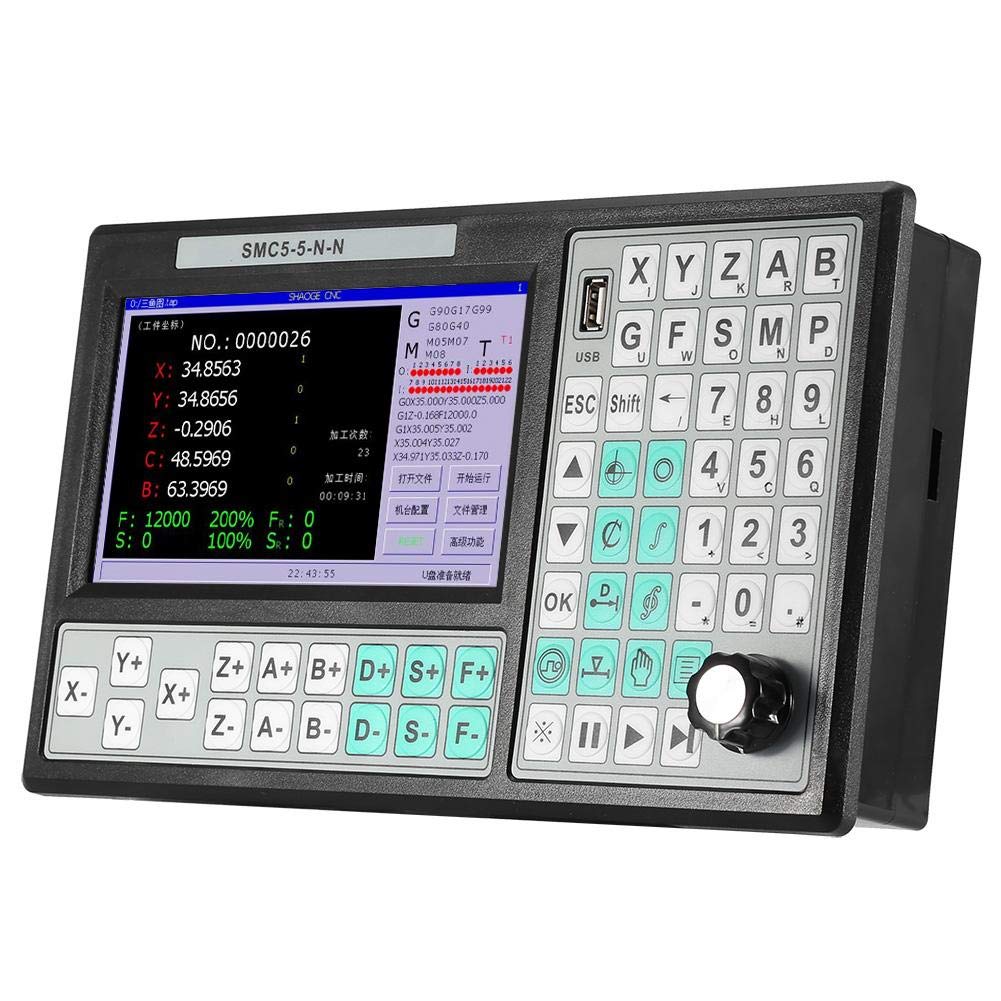

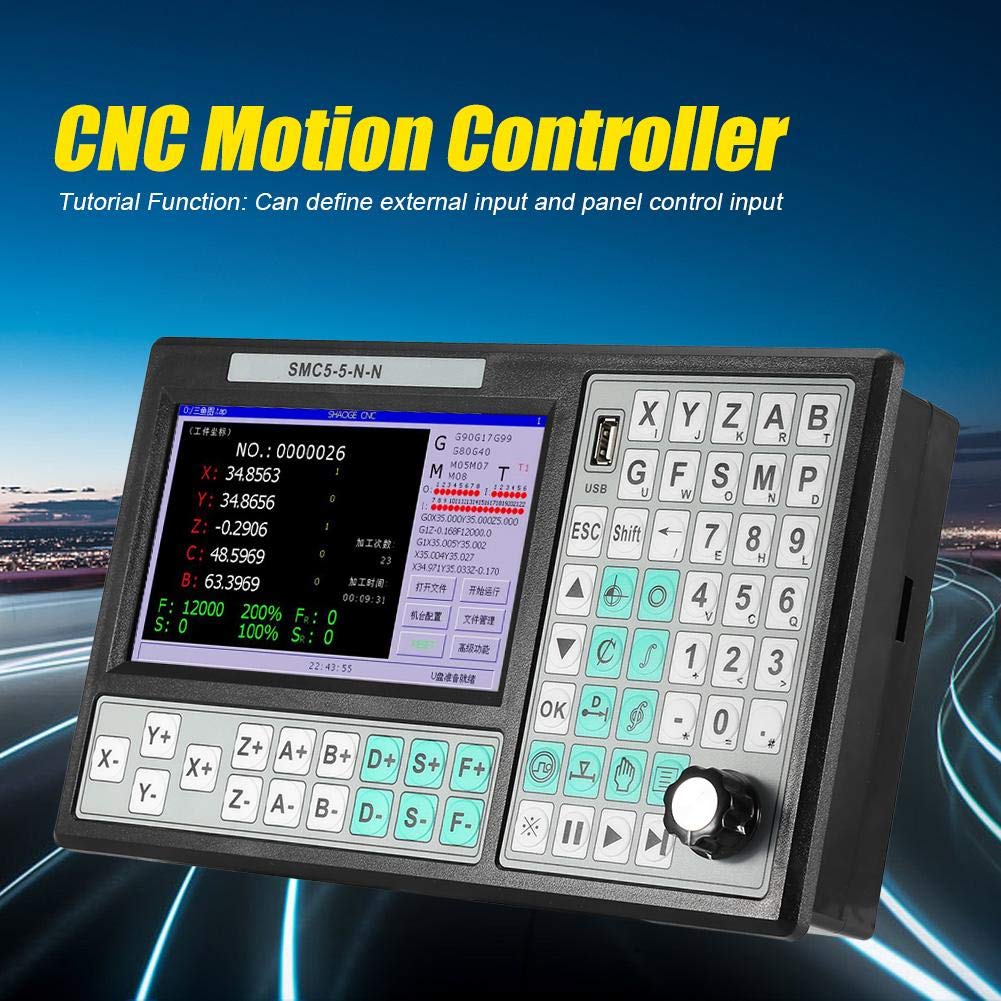

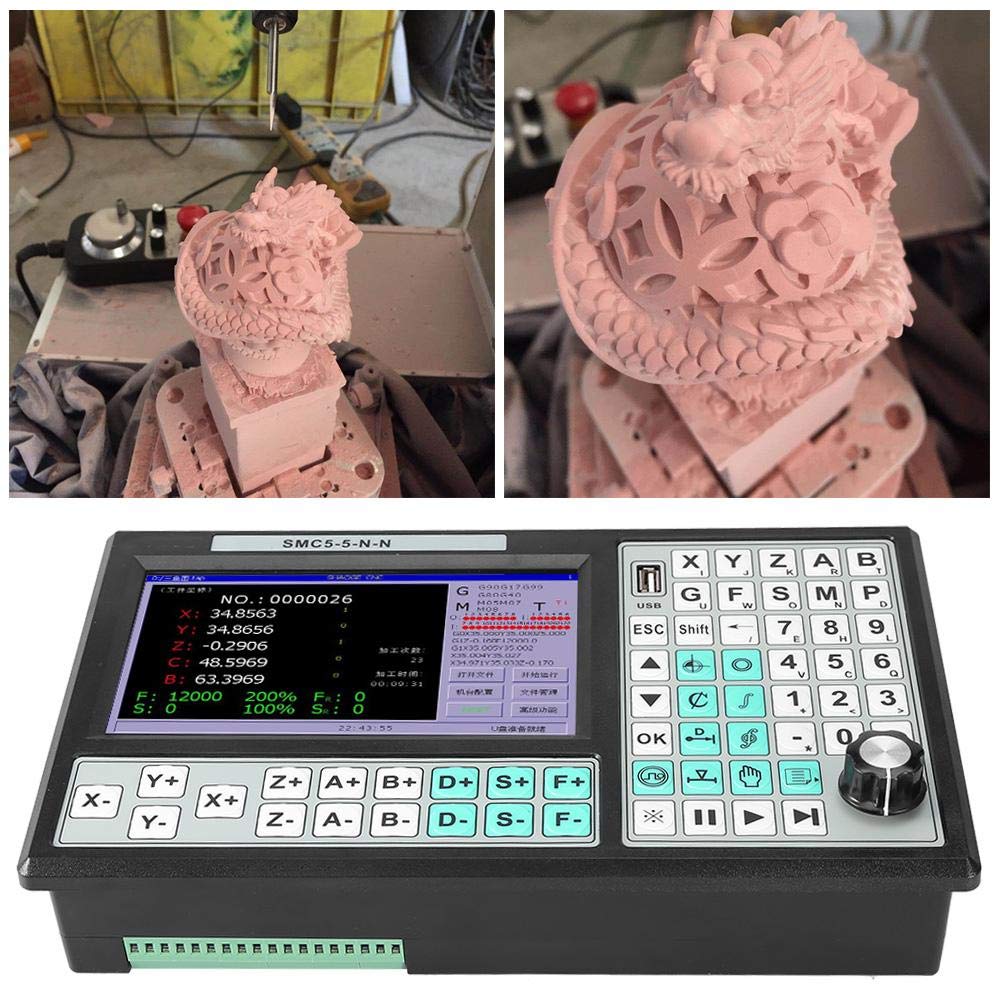

5-Axis Offline CNC Motion Controller - 500KHz USB CNC Controller for Mach3 Replacement | Perfect for CNC Milling, Engraving & 3D Printing Machines

The Motion Controller Adopts High Performance 32 Bit Cpu And High Performance Fpga, Equipped With 7 Inch Lcd Display. Humanized Window ManMachine Interface. Memory Uses External Usb With BuiltIn 8Gtf Card, Large Storage Space. With Touch Type Keyboard, The System Has The Characteristics Of High Reliability, High Precision, Low Noise And Easy Operation. The Controller Has 5 Axis Linkage And MultiMicro Segment ForwardLooking Control Algorithm, Which Can Realize Five Axis Linear Interpolation And Five Axis MultiMicro MultiLine Continuous Interpolation, And Has Break Line Continued Carving Control, PowerOff Storage Coordinate Function. Support The Hand Wheel Control Interface. Simple And Clear Parameters Are Convenient And Quick For Your Operation. The Input/Output Setting Functions Are Convenient For Your Use And Maintenance. System Composition: The Cnc System Is Mainly Composed Of The Following Parts: 1. High Performance, High Speed 32 Bit Arm Cpu, HighPerformance Fpga 2. 7 Inches Lcd Screen (Resolution: 800 X 480) &Nbsp; &Nbsp; 3. Input/Output (16-Channel OptoIsolated 10Ma Inputs, 8-Channel Opto-Isolated Pull-Down Tank Flow 500Ma Output) Specification: Standard Data Unit 0.001Mm General Accuracy: ±2Pp Continuous Straight-Line Corner Accuracy: 1/4 Of The Corner Bow Height Under Normal State Max. Data Size: ±99999.999Mm Max. Pulse Output Frequency: 500Khz (All Of Five Axis Can Be 500Khz At The Same Time) &Nbsp; &Nbsp; Number Of Control Axis: 5 Axis (X, Y, Z, A, B) Number Of Linkage Axis: 5-Axis Linkage And 5-Axis Multi-Micro Multi-Line Forward-Looking Interpolation Control Support U Disk, Built-In Memory, Which Can Expand To 32G Weight: Approx. 1174G/41.4Oz Package List: 1 * 5 Axis Offline Motion Controller
